Apr 27, 2018
Tattoo X210 Quadcopter frame
Designed a new frame to build a quadcopter with latest electronic available and my good old ZMR 250 arms.
Result is a very lightweight, strong and compact racer.
all electronic parts are protected with tropicalisation silicon. All this should go in water without any damage.... will post a video about this.
camera can rotate from 0 to 45 degrees
U can download stl files here : https://www.thingiverse.com/thing:2882426
electronic parts used are :
- Racerstar tattoo F4 AIO flight controller
- Runcam micro
- eachine VTX03
- eachine xsr rx
- 4 Emax 1806 motors (less powerfull than 2205.... but very lightweight...)
Sep 21, 2017
Pepperfish frame designed with graphscad
For those interested in ultralight FPV drones , i designed a frame for pepperfish electronic design.
this frame and graphscad files are available here
https://www.thingiverse.com/thing:2546638
Jun 6, 2017
version 1.0.10 is on the way with interesting new features.
- New declaremodule node will allow module declaration and will work with callmodule.
This declare module node will provide a more cleaner way to create and use module and parameters.
Old default behaviour will keep working.
- polygon smoothing
- New declaremodule node will allow module declaration and will work with callmodule.
This declare module node will provide a more cleaner way to create and use module and parameters.
Old default behaviour will keep working.
- polygon smoothing
Mar 31, 2017
Version 1.0.9 is on the way
This version provide new interesting features.
There are 2 new nodes
- ifdebug mode : conditionnal node based on global variable driven with a checkbox. This allow you to process or not process some nodes for openscad refresh. I used it to display propellers and motors when creating a drone frame
- ifassembled mode : conditionnal node based on global variable driven with a checkbox. This allow you to process or not process some nodes for openscad refresh. I used it to switch between a ready to print layout and an assembled preview of my drone frame.
Here is the drone frame Ready to print with debug mode on.
The drone frame is assembled and debug mode is on
The drone frame is assembled with debug mode off
There are 2 new nodes
- ifdebug mode : conditionnal node based on global variable driven with a checkbox. This allow you to process or not process some nodes for openscad refresh. I used it to display propellers and motors when creating a drone frame
- ifassembled mode : conditionnal node based on global variable driven with a checkbox. This allow you to process or not process some nodes for openscad refresh. I used it to switch between a ready to print layout and an assembled preview of my drone frame.
Here is the drone frame Ready to print with debug mode on.
The drone frame is assembled and debug mode is on
The drone frame is assembled with debug mode off
Mar 14, 2017
V.1.0.8 released !
Found some free time to release a new version.
Please report any bug on the forum.
Very proud of this new spherical color picker..... (all rgb space sampling in one circle)
Feb 19, 2017
Custom node created by user. That's cool indeed.
Chris L.T created a new none for multivariable declaration. That's really cool.
You can download and test them here : http://graphscad.forumotion.com/t32-proposed-node-type-multiple-variables#88
Feb 18, 2017
New color picker node.
Feature request done. Will be available in version 1.0.8. A fast color picker.
I use famous sphere color with 6 axix color mix and radial grayscale.
I use famous sphere color with 6 axix color mix and radial grayscale.
Feb 17, 2017
Feb 13, 2017
V0.0.7 is here
only bug fixes :
- $fn behaviour is now coherent. Can be overrided with globalsettings nodes, or automatically set if you leave it blank
- Autoconnect is 'too much'. only first matching connection is set now
- The 'BUG' of 'use<module>' is now fixed. callcall.scad is now working for every version, from graphscad and from openscad.
Feb 12, 2017
V1.0.6 is here
- new node globalsettings. With this node you can set special vars of openscad $vpr,$vpt,$vpd etc
- new node variable and variable2d : allow insertion of intermediate variable declaration in the graph
- new node switchcase. avoid complex cascade of 'IF' when using multiple conditionnal expressions
- keys F2 and F3 allow zoomin an zoomout of view. usefull for those who don't have any wheel on their mouse
- some bug fixes
- new examples
next version will include a new switchcase node
next version will include a new switchcase node. this will be more smart than using a cascade of 'IF'.
Feb 10, 2017
V1.0.5 !!!
- Some bug fixes
- fixed : positions where not saved when moving multiple selected nodes
- fixed : node roundedcube was not working when rounding was zero
- fixed : node box was not working when rounding was 0
- display of connection links :
- arrow is now displayed to see direction of data flow
- best nurbs shape when connecting from left to right
- graph evaluation optimization
Feb 8, 2017
v1.0.4 is here
Hard work to fix bugs.
There is an interesting example that show how to use function nodes to generate parametric list of points to draw 2D objects.
Take a look to nacaprofile.scad and callnacaprofile.scad examples.
As some module can output some 2D objects, there is a new node called Callmodule2D in this version.
2D nodes are now visible in Openscad without using linear_extrude.
There is an interesting example that show how to use function nodes to generate parametric list of points to draw 2D objects.
Take a look to nacaprofile.scad and callnacaprofile.scad examples.
As some module can output some 2D objects, there is a new node called Callmodule2D in this version.
2D nodes are now visible in Openscad without using linear_extrude.
Feb 7, 2017
Feb 1, 2017
There was a very bad bug in v1.0.1. the scene view will not be extended when adding nodes.
this is fixed in v1.0.2.
Next versions will focus only on bug corrections.
V1.0.2 :
- fixed multi refresh during loading. that was very slow. Loading are far most quicker now.
- now scene resizing and scrollbar update is very smart cause it keeps a margin around existing or moving nodes..
this is fixed in v1.0.2.
Next versions will focus only on bug corrections.
V1.0.2 :
- fixed multi refresh during loading. that was very slow. Loading are far most quicker now.
- now scene resizing and scrollbar update is very smart cause it keeps a margin around existing or moving nodes..
Jan 31, 2017
Jan 27, 2017
Version 1.0.0 is available.
- Windows version
- Debian version
- Smart auto connection when creating a new node
- function declaration to get complex expressions without many nodes (see egg example)
- Quick copy of an existing node
- Clipboard : Operations of Copy/Cut/Paste with multiselection (keep CTRL key pressed to select multiple nodes)
- Change of input plug numeric values using key up and key down
- Enhanced graphic layout of nodes with rounded rect
- Many bug fixes
Jan 23, 2017
V0.0.8 available :
Whats's new :
- Now callmodule node will be refreshed and reflect true names of imported module parameters (take a look at callmodule.scad example)
- Callmodule node can call a module with some callmodule nodes inside ;-) (see callcall.scad example)
- Check file saved before closing windows or menu exit
- refresh openscad when deleting a connection
- more smart automatic hide of numbered parameters to get smaller node display
Whats's new :
- Now callmodule node will be refreshed and reflect true names of imported module parameters (take a look at callmodule.scad example)
- Callmodule node can call a module with some callmodule nodes inside ;-) (see callcall.scad example)
- Check file saved before closing windows or menu exit
- refresh openscad when deleting a connection
- more smart automatic hide of numbered parameters to get smaller node display
Jan 22, 2017
linux beta is availaible
Hi. This version was compiled and tested with Ubuntu 16.04.
GIVE ME FEEDBACK IF YOU GET PROBLEM TO RUN IT.
GIVE ME FEEDBACK IF YOU GET PROBLEM TO RUN IT.
Jan 18, 2017
Version 0.0.6 is available.
What's new :
What's new :
- new 'import2d' node to import dxf files
- 'offset' node is updated (rounding 2D object)
- new 'surface' node (extrusion from 2D bitmap)
- new 'intersection_for' node
- additionnal save format : graphscad can now save files to gscad format and scad format. gscad format will only save nodes infos without openscad code. Nothing is changed in scad format that include both nodes info and openscad code.
- some UI bug fixed
- more examples
Jan 15, 2017
New version 0.0.5 is available with major feature : MODULAR files callable with 'CALLMODULE' node.
- By using node 'PARAM', each graphscad file is now 'MODULAR'. you can create a custom part with parameters, then call this part from another file with node 'CALLMODULE'. Look at examples.This feature will allow to create complex object with multiple scad files.
- WARNING : Node 'PARAM' is changed. Added the field 'paramname'. Before, it was using the name of the node (it was not logical). You would have to edit files from previous version if you used 'PARAM' node and edit this new propertie. it's pretty fast to update.
- Created a new node 'metricthread'
- Created new node 'IF' for conditionnal statement
- Some UI improvement (mode compact node display)
- More Examples (robot wheel, custombox, etc...)

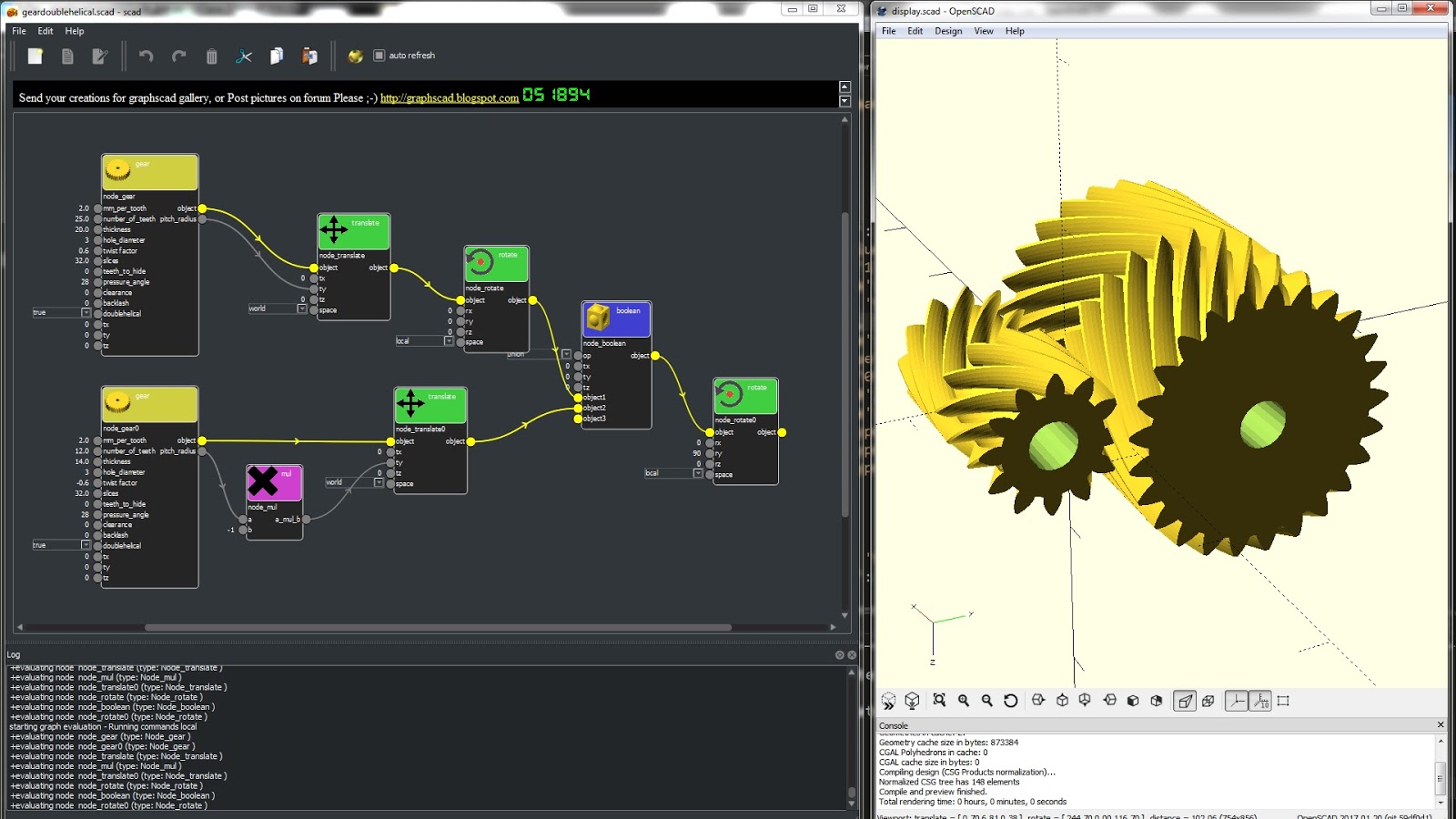

- Created new node 'GearRack' that works with gear node
Jan 13, 2017
Jan 11, 2017
Subscribe please.
As, i'm updating Graphscad frequently (linux version is on the way), consider subscribing to this blog to receive news about graphscad.
Jan 10, 2017
Jan 9, 2017
